Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
ARM9, N32905 processor,ARM9 core
3.5 inch LCD display,320x240
Linux 2.6 system
32MBytes SDRAM,128MB NAND
Read card distance:
5000 Unit/Units per Week
Packaging & Delivery
Gift box,customized box
Shekou, Shenzhen, China

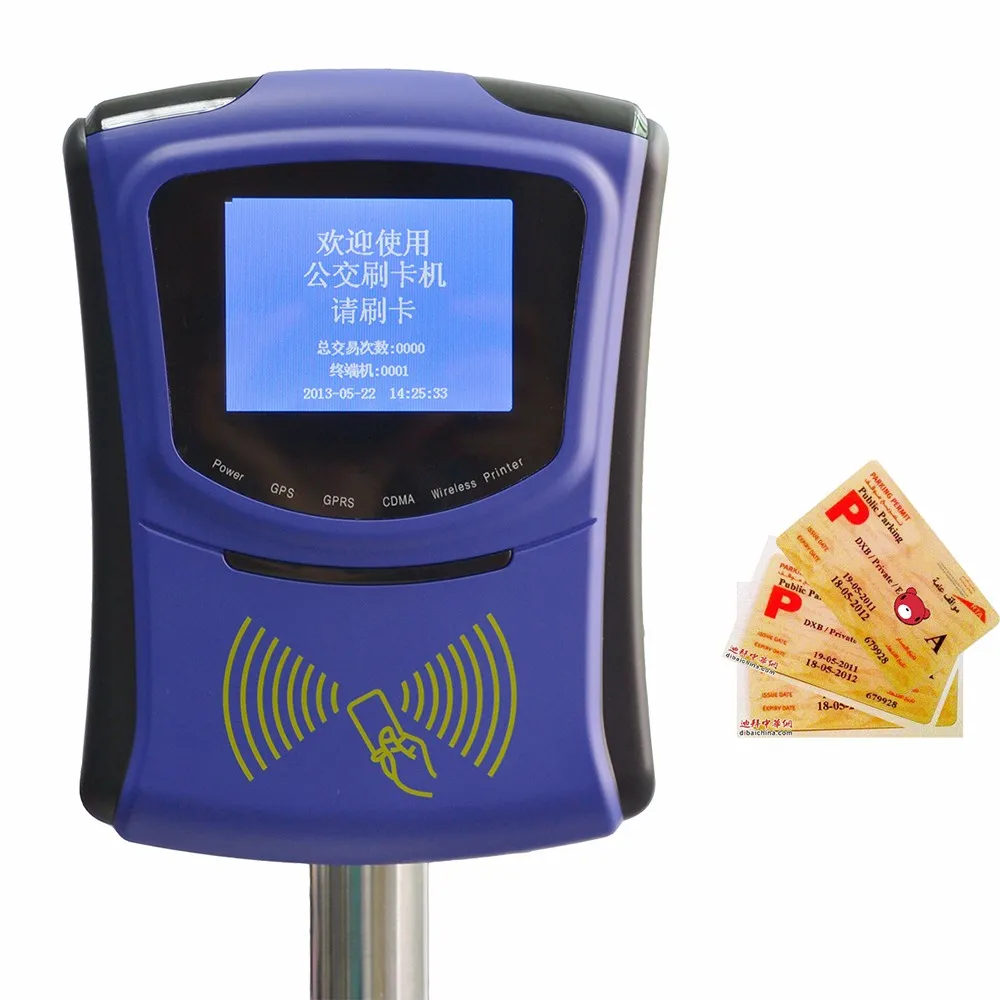

Smart RFID Bus POS Validator With IC Prepaid Card Reader For Automated AFC Fare Collection System
1. Bus, Taxi, Metro, Highway, Supermarkets, Gas station, Kiosk, Store, Theater and so on fast payments fields; 2. Government, Institution, Company, Factory, School, Hospital, Hotel; 3. Urban public transportation ticket payment system, Company shuttle bus ticket payment system,School shuttle bus payment system
Free SDK,Support Secondary Development
1. Made of ABS, Fully adapt to special circumstances on bus
2. Sealed, dustproof, waterproof, shockproof and anti-electromagnetic interference
3. Dedicated stable power supply, voltage overload protection 4. With the most advanced Linux system, high-definition LCD display
5. WIFI Communication + USB data acquisition, support remote upgrading
6. Contactless smart card, read/write capability, light display for reading card 7. Live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card";
8. Support Mifare1 card, CPU card 9. With Thermal printing module, can connect to POS58 slip printer
10. Optional GPS positioning module, for global positioning satellite positioning;
11. Great stability of data storage, data kept as long as 10 years even with power outage 12. Card Capacity: 91,880,000 pcs; 13. Can check the nearest 20 records, to prevent ticket payment dispute. 14. Certification: ISO9001, CCC, CE, IP65
Model:CL1306 bus pos terminal Dimension:200*151*61.5mm Material:Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference Display:3.5 inch LCD display,320x240 Operating system:Linux 2.6 system CPU:N32905 processor,ARM9 core @ 240MHZ Memory:32MBytes SDRAM,128MB NANDFlash Data capacity:259840 pcs of detailed data for console storage, unlimited data at GPRS storage Card capacity:91,880,000 pcs Black list:91,880,000 pcs (download thru PC with USB) Working Voltage:DC 8V-50V Operating temperature:-25℃~65℃ Storage temperature:-40℃~85℃ Humidity:0-95% RH non condensing Keypad:4 command buttons RFID:Can read and write ISO14443 TYPE A\B Electronic tag (Incl. Combi-Card )
Read card distance:0~50mm Supporting card:Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card Frequency:13.56MHz Interfaces/Connectors:RS232, RS485, USB Printer modules:Can be connected to slip printer-POS58 Width of receipt:Based on printer configuration Positioning mode:GPS Power consumption:≤10W Communication Modules:GPRS(900Mhz/1800Mhz), or CDMA(800Mhz) WIFI:Supporting 802.11n/b/g standards,150Mbps,2.4Ghz UnionPay:Compatible for PBOC3.0 UnionPay card Upgrading:Connect USB to PC, upgrade with GPRS Data collection:WIFI, GPRS, USB
Lighting:Red, Green light Sound prompt:Buzzer, single channel speaker (voice report) Voice report prompt:16KHz,16bit single channel voice report prompt
We are not only provided the system ,but also provided the pos machine.
In order to provide good service ,we also provide customers the management system.

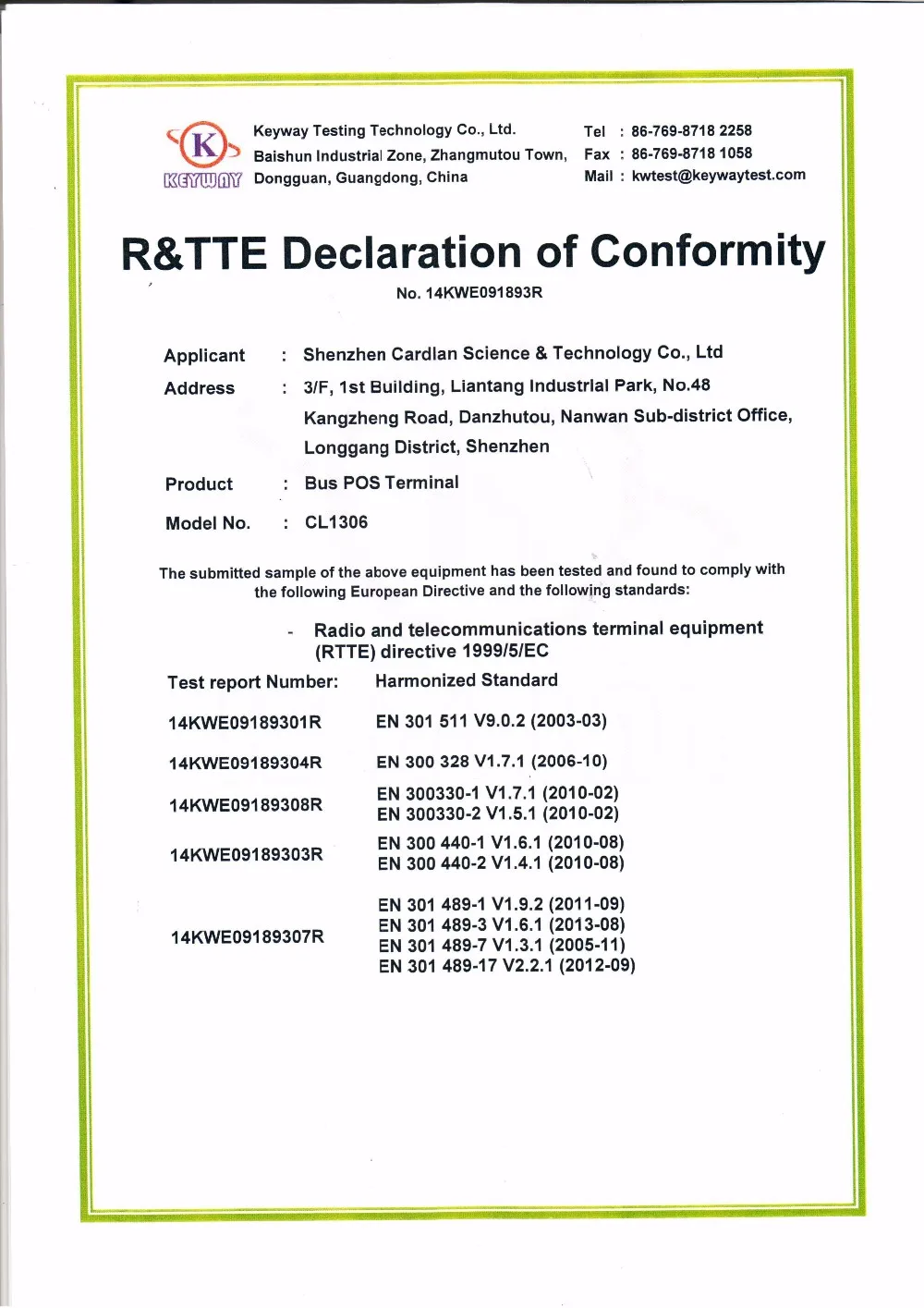

Passed the ISO9001:2008 quality system authentication and CE authentication.
Our Testing room
Q: Do you sell the machine and management system together ?
A: We can sell them together ,but you also can only buy machine or system.
Q: How to set the machine and management?
A: We'll provide you the whole set instruction book of machine and the system,you can do as the instruction .We also can send engineers to your country to setup the machine and system for you.
Q: Do you provide samples ?
A: Yes, we could offer the sample for you inspection.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below:
